  1. AI Features

AI Features in Aligned Elements

PreviousRemove a DashboardNextThe Automation Tool

Last updated 22 days ago

AI Features

Aligned Elements offers a range of AI (Artificial Intelligence) assisted features designed to enhance efficiency. These features include:

  • Populate Attributes: Automatically fills in the attributes of a document object by analyzing its related input data.

  • Suggest Traces: Recommends trace candidates to or from a document object.

  • Summarize for Title: Generates a concise and contextually appropriate title for a document object by evaluating its attributes.

AI Features need to be configured to be available. Please refer to the or contact Aligned AG.

Populate Attributes

This feature fills in attribute fields of a document object by analyzing its input data. As input data serve objects tracing to this object. Specifying the types of input objects to consider is done in the configuration.

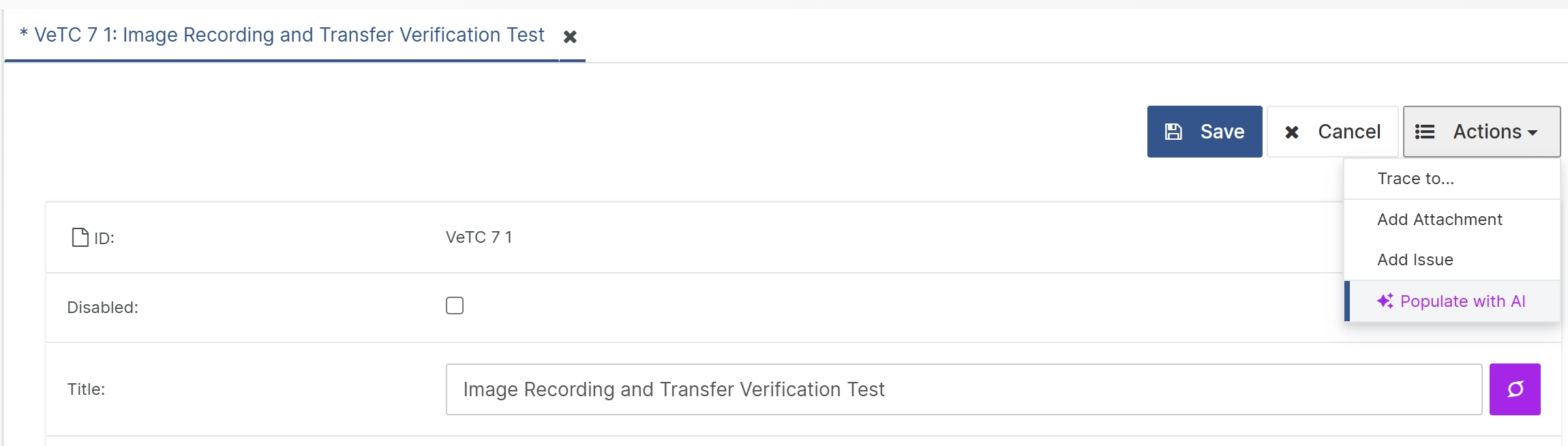

To use this function, edit a document object, go to the "Actions" menu, and select "Populate with AI". You can then review and further edit the attributes as needed before saving.

Suggest Traces

This feature recommends trace candidates when setting traces to or from an document object. This is done by evaluating the object’s title, type, and desired trace direction.

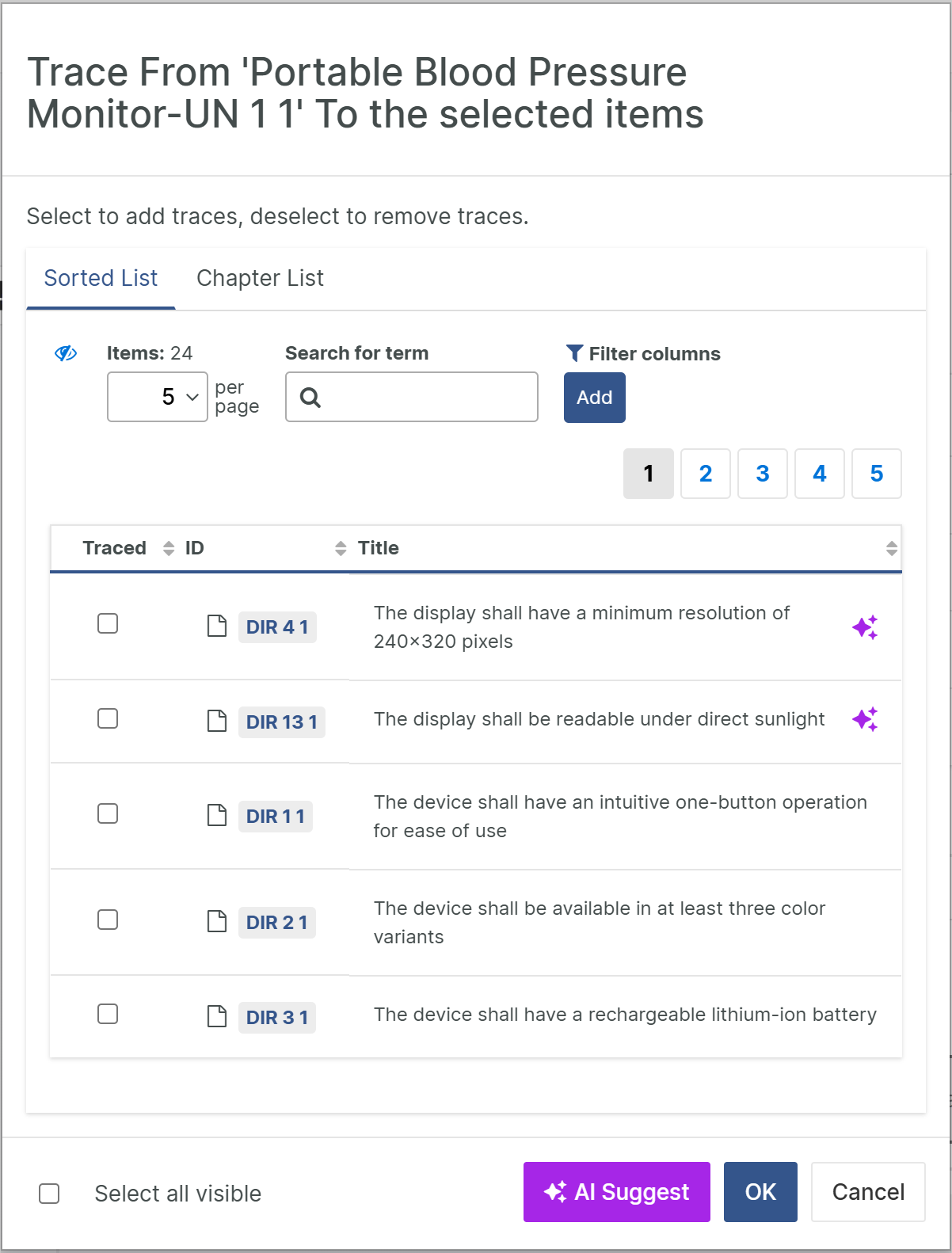

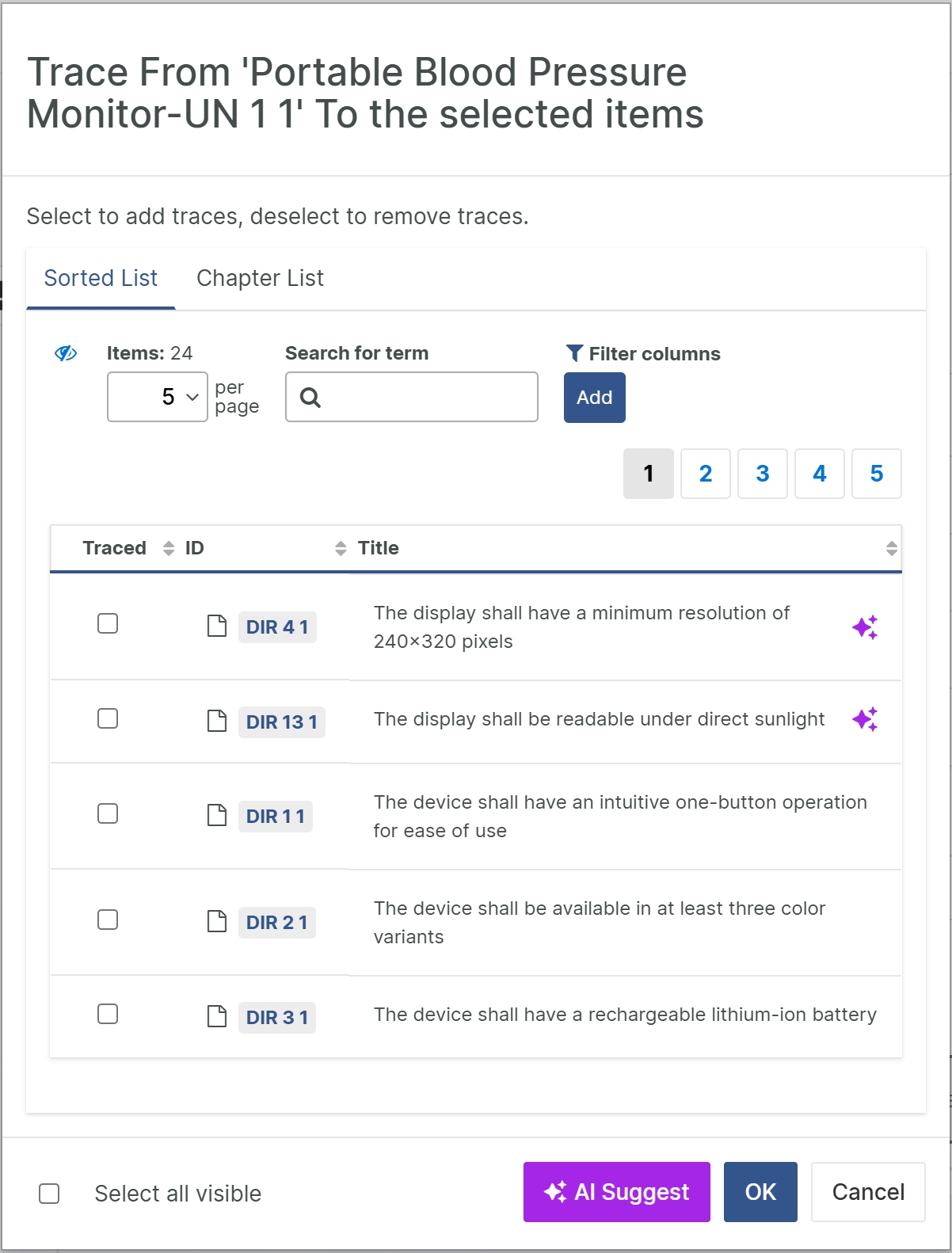

To use this function, click on "AI Suggest" in the dialog box when setting traces. The suggested objects are marked with a symbol.

Summarize for Title

This feature generates a meaningful and concise title for a document object by analyzing its existing attributes.

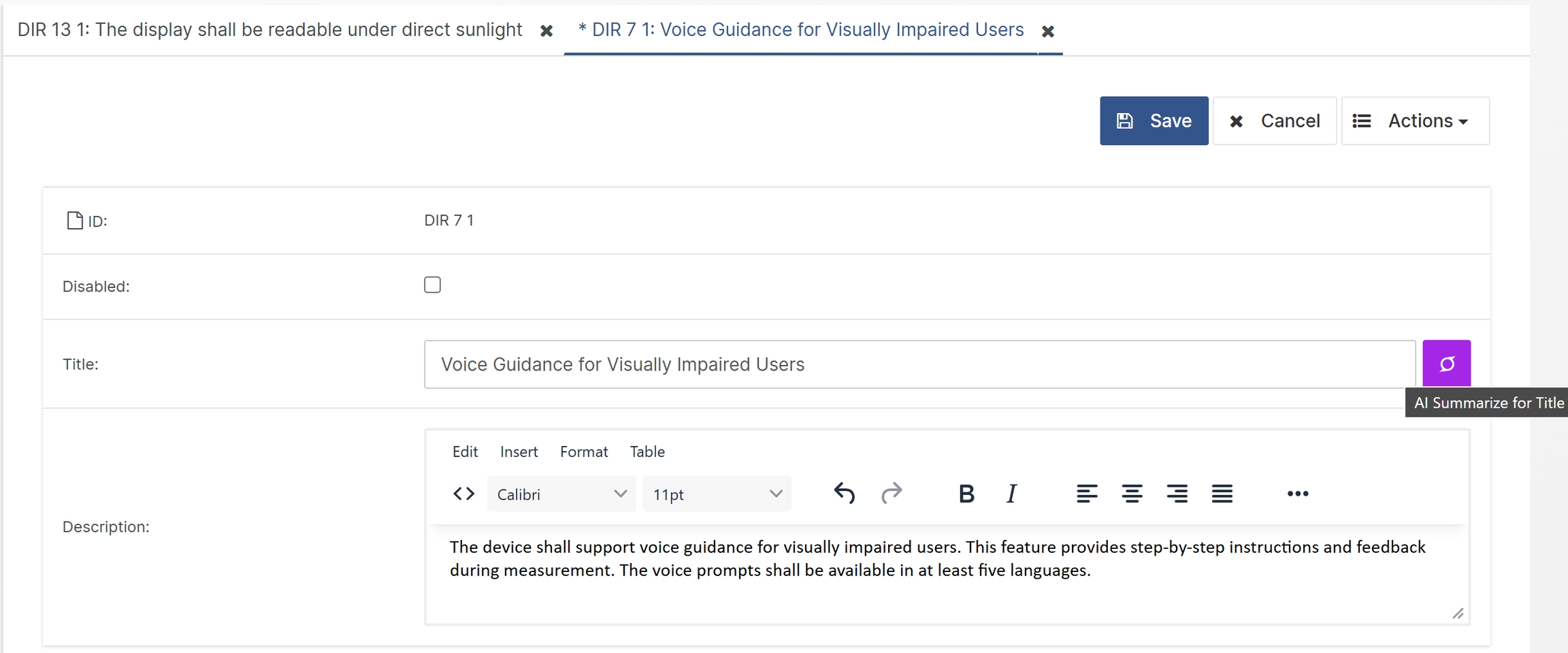

To use this function, edit a document object and click on the "AI Summarize for Title" button next to the title field.
